CS 21 25.2 Project (Arch-252 Ecosystem)

🔴 Project Overview

The CS 21 25.2 project involves the creation of the following for a custom architecture called Arch-252:

RISC-V-based assembler
Pyxel-based emulator
Simplified Flappy Bird in Arch-252 assembly
Digital-based Arch-252 processor

You are to form a group with 3-4 students from CS 21 25.2. Each student must be the main contributor of at least one of the deliverables above.

You may think of the project as a solo activity in which you choose one of four given tasks (in which the task must be unique within a group) with collaboration between group members allowed.

🔴 Arch-252 Architecture

🟠 Overview

Arch-252 is a 16-bit architecture with the following architectural registers:

pc (program counter)
sp (stack pointer)
tm (temporary register)
ga (general-purpose register A)
gb (general-purpose register B)
gc (general-purpose register C)
gd (general-purpose register D)
ge (general-purpose register E)
gf (general-purpose register F)
gg (general-purpose register G)
gh (general-purpose register H)

One word in Arch-252 is 16 bits wide. Each register is one word wide.

As Arch-252 is a von Neumann architecture, it has a single address space for both instructions and data that is word-addressable (i.e., has two bytes of data per memory address), is little endian, and contains \(2^{16}\) addresses.

🟠 Assembly instructions

All Arch-252 assembly instructions are listed below:

Mnemonic	Opcode	Description
`jmp op1`	`0x00`	`REG[sp] -= 1` `MEM[REG[sp]] = NextPC` `PC = op1`
`set op1, op2`	`0x01`	`op1 = op2`
`add op1, op2`	`0x02`	`op1 = op1 + op2` `REG[tm] = 0x0001 if overflow else 0x0`
`sub op1, op2`	`0x03`	`op1 = op1 - op2` `REG[tm] = 0xffff if underflow else 0x0`
`mulu op1, op2`	`0x04`	`op1 = op1 * op2` (unsigned) `REG[tm] = ((op1 * op2) >> 16) & 0xffff` (unsigned)
`muls op1, op2`	`0x05`	`op1 = op1 * op2` (signed) `REG[tm] = ((op1 * op2) >> 16) & 0xffff` (signed)
`divu op1, op2`	`0x06`	`op1 = op1 / op2` (unsigned integer division) `REG[tm] = ((op2 << 16) / op2) & 0xffff if op2 != 0 else 0x0` (unsigned integer division)
`divs op1, op2`	`0x07`	`op1 = op1 / op2` (signed integer division) `REG[tm] = ((op2 << 16) / op2) & 0xffff if op2 != 0 else 0x0` (signed integer division; rounds toward zero)
`modu op1, op2`	`0x08`	`op1 = (op1 % op2) if op2 != 0 else 0` (unsigned modulo)
`mods op1, op2`	`0x09`	`op1 = (op1 % op2) if op2 != 0 else 0` (signed modulo)
`and op1, op2`	`0x0a`	`op1 = op1 & op2`
`or op1, op2`	`0x0b`	`op1 = op1 \| op2`
`xor op1, op2`	`0x0c`	`op1 = op1 ^ op2`
`srl op1, op2`	`0x0d`	`op1 = op1 >>> op2` (logical right shift) `REG[tm] = ((op1 << 16) >> op2) & 0xffff`
`sra op1, op2`	`0x0e`	`op1 = op1 >> op2` (arithmetic right shift) `REG[tm] = ((op1 << 16) >> op2) & 0xffff`
`sll op1, op2`	`0x0f`	`op1 = op1 << op2` (logical left shift) `REG[tm] = ((op1 << op2) >> 16) & 0xffff`
`ifany op1, op2`	`0x10`	`PC = NextPC if (op1 & op2 != 0) else PC = NextNextPC`
`ifnon op1, op2`	`0x11`	`PC = NextPC if (op1 & op2 == 0) else PC = NextNextPC`
`ifeq op1, op2`	`0x12`	`PC = NextPC if (op1 == op2) else PC = NextNextPC`
`ifne op1, op2`	`0x13`	`PC = NextPC if (op1 != op2) else PC = NextNextPC`
`ifgtu op1, op2`	`0x14`	`PC = NextPC if (op1 > op2) else PC = NextNextPC` (unsigned)
`ifgts op1, op2`	`0x15`	`PC = NextPC if (op1 > op2) else PC = NextNextPC` (signed)
`ifltu op1, op2`	`0x16`	`PC = NextPC if (op1 < op2) else PC = NextNextPC` (unsigned)
`iflts op1, op2`	`0x17`	`PC = NextPC if (op1 < op2) else PC = NextNextPC` (signed)
`addt op1, op2`	`0x18`	`op1 = op1 + op2 + REG[tm]` `REG[tm] = 0x0001 if overflow else 0x0`
`subt op1, op2`	`0x19`	`op1 = op1 - op2 + REG[tm]` `REG[tm] = 0xffff if underflow else 0x0`
`seti op1, op2`	`0x1a`	`op1 = op2` `REG[gg] += 1` `REG[gh] += 1`
`setd op1, op2`	`0x1b`	`op1 = op2` `REG[gg] -= 1` `REG[gh] -= 1`

Note that NextPC == PC + InstrWidth(MEM[PC]) and that NextNextPC == NextPC + InstrWidth(MEM[NextPC]).

op1 (operand 1) and op2 (operand 2) may assume the following forms:

Form	Interpretation
`x` where `x` is `pc`, `sp`, `tm`, `ga`, `gb`, `gc`, `gd`, `ge`, `gf`, `gg`, or `gh`	`REG[x]`
`@x` where `x` is `ga`, `gb`, `gc`, `gd`, `ge`, `gf`, `gg`, or `gh`	`MEM[REG[x]]`
`@x+k` where `x` is `ga`, `gb`, `gc`, `gd`, `ge`, `gf`, `gg`, or `gh` and `k` is either a signed integer that can be expressed in 16-bit two's complement, or `0xV` where `V` is sequence of 1-4 hexadecimal symbols (mixed case)	`MEM[REG[x] + k]`
`push` (valid only for `op1`)	`MEM[--REG[sp]]` (decrement before accessing memory)
`pop` (valid only for `op2`)	`MEM[REG[sp]++]` (increment after accessing memory)
`peek`	`MEM[REG[sp]]`
`@peek+k` where `k` is either a signed integer that can be expressed in 16-bit two's complement, or `0xV` where `V` is sequence of 1-4 hexadecimal symbols (mixed case)	`MEM[REG[sp] + k]`
\([-32768, 65535]\)	Literal value
`0x8000`, ..., `0x0`, `0x00`, `0x000`, `0x0000`, `0x1`, `0x01`, ..., `0x3fff`	Literal value
`@`\([-32768, 65535]\)	`MEM[literal value]`
`@0x8000`, ..., `@0x0`, `@0x00`, `@0x000`, `@0x0000`, `@0x1`, `@0x01`, ..., `@0x3fff`	`MEM[literal value]`

🟠 Machine instruction encoding

Each Arch-252 machine instruction falls into one of four instruction types:

Type 1 (regular)
Type 2 (single immediate)
Type 3 (double immediate)
Type 4 (special)

All values are represented using two's complement.

Type 1 (regular) instructions are two bytes wide and have the following bit mappings:

Bits 15-10: Operand 1
Bits 9-5: Operand 2
Bits 4-0: Opcode

Type 2 (single immediate) instructions are four bytes wide and have the following bit mappings:

Bits 23-16: Immediate value
Bits 15-10: Operand 1
Bits 9-5: Operand 2
Bits 4-0: Opcode

Type 3 (double immediate) instructions are six bytes wide and have the following bit mappings:

Bits 31-24: Immediate value for operand 1
Bits 23-16: Immediate value for operand 2
Bits 15-10: Operand 1
Bits 9-5: Operand 2
Bits 4-0: Opcode

Type 4 (special) instructions are two bytes wide and have the following bit mappings:

Bits 15-10: Operand 1
Bits 9-5: Function
Bits 4-0: Opcode (always 00000)

op1 (operand 1) and op2 (operand 2) values are encoded as follows:

Value	Encoding
`ga`	`0x00`
`gb`	`0x01`
`gc`	`0x02`
`gd`	`0x03`
`ge`	`0x04`
`gf`	`0x05`
`gg`	`0x06`
`gh`	`0x07`
`@ga`	`0x08`
`@gb`	`0x09`
`@gc`	`0x0a`
`@gd`	`0x0b`
`@ge`	`0x0c`
`@gf`	`0x0d`
`@gg`	`0x0e`
`@gh`	`0x0f`
`@ga+k`	`0x10` (see below; `k` is 16-bit immediate)
`@gb+k`	`0x11` (see below; `k` is 16-bit immediate)
`@gc+k`	`0x12` (see below; `k` is 16-bit immediate)
`@gd+k`	`0x13` (see below; `k` is 16-bit immediate)
`@ge+k`	`0x14` (see below; `k` is 16-bit immediate)
`@gf+k`	`0x15` (see below; `k` is 16-bit immediate)
`@gg+k`	`0x16` (see below; `k` is 16-bit immediate)
`@gh+k`	`0x17` (see below; `k` is 16-bit immediate)
`push` (for `op1` only) `pop` (for `op2` only)	`0x18`
`peek`	`0x19`
`@peek+k`	`0x1a` (see below; `k` is 16-bit immediate)
`sp`	`0x1b`
`pc`	`0x1c`
`tm`	`0x1d`
`k`	`0x1e` (see below; `k` is 16-bit immediate)
`0xKKKK`	`0x1e` (see below; `0xKKKK` is 16-bit immediate)
`@0xKKKK`	`0x1f` (see below; `0xKKKK` is 16-bit immediate)

🟠 I/O devices

🟡 Memory-mapped I/O

The memory address space is mapped as follows:

0x0000-0x8fff: RAM (instruction and data memory)
0x9000-0x9800: 32x32 RGB display
0x9801: Input button
0x9802: Tick counter
0x9803: RNG source
0x9804-0x9fff: Unused
0xa000-0xffff: RAM (stack memory)

🟡 32x32 RGB display

A single 32x32 RGB display is available for Arch-252 programs to display graphics with.

Each pixel is represented as a 32-bit value with format 0x00RRGGBB where RR, GG, and BB are values from 0-255 representing the intensity of red, green, and blue components of the RGB pixel, respectively. Bits 31-24 of the 32-bit value are unused.

The display has its own video RAM; it stores the data of all 1024 pixels with a default of 0x00000000 (black). Two sets of 1024 pixels exist (each called a buffer) for which one buffer is active at any instant. The currently active buffer determines the pixels shown by the RGB display.

Any pixel update operation performed by the processor will be done on the inactive buffer. The processor may issue a buffer swap operation to make the currently active buffer inactive and the other buffer active.

Read operations directed to this device are ignored. There is no way for the processor to select which buffer to make active (i.e., only a toggle-based selection mechanism is available).

🟡 Input button

A single input button is available for Arch-252 programs to take user input with.

While the button is pressed, its internal 24-bit state is set to 0x000001. While the button is not pressed, its state is set to 0x000000. The processor may issue a read operation to get the current state of the button.

Write operations directed to this device are ignored.

🟡 Tick counter

A 16-bit tick counter is available for Arch-252 programs that can be read from by the processor to get the total number of clock cycles that has passed (modulo 16).

This device is intended to be used for busy-waiting in Part 3 to ensure that each game loop starts at roughly the same delay from the previous one.

Write operations directed to this device are ignored.

🟡 RNG source

A device that provides a random 24-bit value upon being read from is available for Arch-252 programs as a convenient source of randomness.

Write operations directed to this device are ignored.

🔴 Tasks

As mentioned earlier, each member is expected to be the main contributor for at least one task below.

🟠 Part 1: RISC-V-Based Assembler

🟡 Overview

Create a RISC-V-based assembler that converts Arch-252 assembly code into a binary file containing equivalent Arch-252 machine instructions.

Your entire code must be in a single file named assembler.s inside the part1 directory.

🟡 Execution

Your code is expected to work with v1.01 of the offline CS 21 25.2 Ripes fork and should be executed via the command line as follows (replacing ripes with the path to your locally installed Ripes fork):

ripes --src assembler.s --mode cli -t asm --proc RV32_5S --isaexts M

Upon execution, syscall code 63 (read syscall) must be invoked with file descriptor equal to 0 to take a string input from the user via stdin that is at most 300 characters. This string will be referred to as <input-filepath>.

After taking <input-filepath>, the read syscall must again be invoked in the same manner to take another string input from the user that is also at most 300 characters. This string will be referred to as <output-filepath>.

<input-filepath> filepath is taken to be the absolute or relative path to a file (ideally with the extension .252asm) containing an Arch-252 assembly prgoram to assemble. <output-filepath> is the expected path to the output file (ideally with the extension .252bin).

Tip: File I/O with Ripes

Syscall code 1024 (open syscall) can then be used to open the said files for reading and writing, respectively.

Reading can be done with the read syscall using the file descriptor given by the corresponding open syscall. Writing can be done similarly via syscall code 64 (write syscall).

Tip: Streamlined testing

To streamline testing, an input file (say input.txt) can be created where the first line is <input-filepath> and the second line is <output-filepath>.

For example, <input-filepath> being input.252asm and <output-filepath> being output.252bin would result in the following input.txt (replacing ripes with the path to your locally installed Ripes fork):

input.252asm
output.252bin

This can then be fed to Ripes as user input via terminal file redirection:

ripes --src assembler.s --mode cli -t asm --proc RV32_5S --isaexts M < input.txt

🟡 `.raw` directive

.raw is an Arch-252 assembler directive that allows assembly programs to statically specify raw words in fixed memory addresses. The .raw directive is written as follows:

.raw <word>

where <word> is either 0x followed by 1-4 hexadecimal symbols, or an integer in the range \([-32{,}768, 65{,}535]\).

.raw is an emitting directive (i.e., it results in data being written to the emitted binary file).

🟡 `.addr` directive

.addr is an Arch-252 assembler directive that allows assembly programs to set the current memory address to be written to. The .addr directive is written as folows:

.addr <a>

where <a> is either 0x followed by 1-4 hexadecimal symbols, or an integer in the range \([0, 65{,}535]\). <a> is taken to be the next address to be written to by the following instruction or emitting directive.

If .addr sets the current address to an address that has already been written to previously, the next instruction or emitting directive will simply overwrite the existing data.

.addr is a nonemitting directive (i.e., it does not result in data being written to the emitted binary file).

🟡 Assembly file format

Each line in a .252asm file is expected to be one of the following:

Instruction
Directive
Label
Comment

Simplifying assumptions

To simplify parsing, each line is expected to have only one of the above, or be an empty line consisting of zero or more spaces.

Lines longer than 100 characters are not expected to be handled by the assembler (i.e., no expected behavior).

All assembly files to be used during testing will be at most \(20{,}000\) lines long.

Instruction lines start with zero or more spaces, followed by exactly one of the assembly instructions stated above, and zero or more spaces until the end of the line.

Directive lines start with zero or more spaces, followed by exactly one of the directives stated above, and zero or more spaces until the end of the line.

Label lines start with zero or more spaces, followed by 1-50 character that are neither colons nor spaces (where the string is referred to as the label), then exactly one colon (optionally zero or more spaces before the end of the line). During checking, no label will be equal to an existing instruction or directive.

Comment lines start with zero or more spaces, followed by a #, and followed by any number of characters (limited by the 100-character line limit) until the end of the line. Comments are not converted into any artifact in the machine code emitted by the assembler.

🟡 Binary file format

Each instruction or emitting directive is converted into a group of bytes that is placed in the binary file in order of appearance. In particular, the \(i^{th}\) group of bytes that appears in the binary file should correspond to the \(i^{th}\) instruction or emitting directive.

The bytes in each group appear in little endian order in the binary file.

The emitted binary file must always be \(2^{16} = 65{,}536\) bytes wide. Unspecified bytes are assumed to be equal to 0x00.

🟡 Error reporting

The assembler must terminate without emitting a binary file upon processing the first occurrence of any of the following errors:

Invalid instruction (the line does not contain a valid instruction or directive)
Invalid argument (the line contains a valid instruction or directive, but has at least one argument that is invalid)

Simplying assumptions

You may assume that <input-filepath> and <output-filepath> will always be valid (i.e., no error handling is expected for invalid paths).

The following text must be output to stderr (write syscall with file descriptor 2) if either an invalid instruction or invalid argument error is detected:

Error in line <n>: <reason>

where <n> is the line closest to the top of the file that has an error and <reason> is either Invalid instruction or Invalid argument.

If an error occurs, the exit code of the program must be set to 1 for Invalid command-line arguments, 2 for Invalid instruction or 3 for Invalid argument. If no error occurs, the exit code must be set to 0.

Tip: Syscall code 93

The exit2 syscall (syscall code 93) is similar to the exit syscall, but allows specifying the exit code via a0.

🟠 Part 2: Pyxel-Based Arch-252 Emulator

🟡 Overview

Create a Python-based program that uses Pyxel to implement an emulator for Arch-252. An emulator

The emulator is supposed to be able to load a binary file in the exact format emitted by the assembler in Part 1. It must use Pyxel to emulate the 32x32 RGB display and the input button expected for Arch-252 as defined previously.

Your entire code must be in a single file named emulator.py inside the part2 directory.

The Pyxel FPS value must be hardcoded at 60.

Tip: Breaking the dependency chain

You are strongly encouraged to hand-write .252bin files with the help of simple Python scripts instead of waiting for the Part 1 deliverable to be fully functional.

Once both Part 1 and Part 2 delivarables are working, you may use the output of Part 1 as the input to Part 2 for correctness verification of both implementations.

🟡 Execution

Your program must be executable using the following command (replacing python3 with the path to the Python interpreter of your system):

python3 emulator.py <bin-filepath> <ipf> <seed>

where <bin-filepath> refers to the filepath to the binary file containing the Arch-252 machine instructions of the program to emulate, <ipf> is the number of Arch-252 instructions to perform during in a single Pyxel frame, and <seed> pertains to the integer randomization seed used by the emulated RNG device (details below).

🟡 32x32 RGB display

The Pyxel window should have a grid with 32 rows and 32 columns that represents the RGB display.

Since Pyxel supports up only up to 16 colors at any instant, the 24-bit RGB color scheme expected by Arch-252 programs has to be approximated using a 16-color palette.

A good approximation for this is the DawnBringer 16 palette. Palette details are given below for your convenience (source):

Hex code (`#rrggbb`)	Color	Sample
`#4e4a4e`	emperor
`#442434`	livid brown
`#30346d`	rhino
`#854c30`	mule fawn
`#346524`	woodland
`#757161`	pablo
`#d04648`	flush mahogany
`#597dce`	danube
`#d27d2c`	brandy punch
`#6daa2c`	olive drab
`#8595a1`	regent gray
`#d2aa99`	eunry
`#6dc2ca`	downy
`#dad45e`	tacha
`#140c1c`	ebony
`#deeed6`	zanah

To quantize the 24-bit RGB value into a color in the DawnBringer 16 palette, you are to use the following color quantization scheme:

\[quantize(c) = \underset{p \in P}{arg\text{ }min}\text{ }[(r_c - r_p)^2 + (g_c - g_p)^2 + (b_c - b_p)^2]\]

where \(P\) is the set containing all 16 RGB colors of the DawnBringer 16 palette, \(c\) is the RGB color to quantize, and \(r_k\), \(g_k\), and \(b_k\) are the red, green, and blue components of RGB color \(k\), respectively.

You are free to set the size of the RGB display relative to the Pyxel window.

The MMIO mapping for the RGB display stated earlier must be followed. The buffer flipping functionality described earlier must also be implemented properly.

🟡 Input button

Emulation of the input button is done by simply mapping the Spacebar keyboard key to the input button. As long as the Spacebar key is pressed, the input button should also be pressed.

The MMIO mapping for the input button stated earlier must be followed.

🟡 Tick counter

Emulation of the tick counter should be done by incrementing a counter after executing a single instruction (i.e., reading from the tick counter during the very first tick should give a value of 0).

It is expected for the 16-bit counter to overflow to zero after reaching \(65{,}535\).

The MMIO mapping for the tick counter stated earlier must be followed.

🟡 RNG source

Emulation of the RNG source should be done by instantiating a singleton Random object in the built-in random package of Python, and initializing it with the <seed> value given in the command-line arguments.

The MMIO mapping for the RNG source stated earlier must be followed.

🟡 Information panel

The area to the right of the RGB display should contain information about the running program. In particular, the following should be shown:

Value of <ipf>
Value of <seed>
Number of executed instructions so far
Current value of tick counter
Current value of pc in hex
Current assembly instruction under pc with proper syntax
Current value of sp in hex
Current value of tm in hex
Current value of ga in hex
Current value of gb in hex
Current value of gc in hex
Current value of gd in hex
Current value of ge in hex
Current value of gf in hex
Current value of gg in hex
Current value of gh in hex

During the end of the first tick, <ipf> instructions should have been executed and the resulting state should be displayed.

🟠 Part 3: Simplified Flappy Bird in Arch-252 Assembly

🟡 Overview

Create a simplified Flappy Bird program in Arch-252 assembly.

Your entire code must be in a single file named flappybird.252asm inside the part3 directory.

🟡 Game loop

The game must operate using a game loop for which the start of each iteration takes roughly the same number of ticks.

Each iteration of the game loop should do the following:

Check for user input
Update game state
Update game state
Perform a buffer swap of the RGB display
Busy-wait until enough cycles have passed to start next iteration (i.e., waste cycles in a loop until time of next iteration)

While you are free to set the number of ticks between game loop iterations, you must ensure that it is roughly followed. It follows that the said number of ticks must be at least as long as the longest time needed for a single iteration to do the operations stated above.

🟡 Player-controlled bird

Zero-indexed rows and columns

In this document, rows and columns will be referred to using zero-based indexing.

The player-controlled bird is a 2x2 square with its top-left cell initially positioned at row 15, column 0.

The color of the bird should be reasonably distinguishable from the colors of all other entities on the grid. Additionally, it must also be reasonably distinguishable from any of the colors of the DawnBringer 16 color palette described in 32x32 RGB display section of Part 2.

If the input button has just been pressed during a game loop iteration, it must set the vertical velocity of the bird to a fixed value that should result in the bird going upward (i.e., a negative horizontal velocity). While you are free to set the actual value of the vertical velocity, the resulting game difficulty must be reasonable.

There must be a periodic addition of a constant value to the vertical velocity of the bird (i.e., constant acceleration due to gravity ideally applied during each game loop iteration). While you are free to set the acceleration value, the resulting game difficulty must be reasonable.

Tip: Simulating fractional numbers using integers

You may employ a fixed-point representation of a subset of numbers with fractional parts using integers.

For example, a fixed-point representation that allows for two digits after the decimal point may represent the fractional value \(25.2\) as the integer \(2500\) with arithmetic being possible via rounding adjustments before and after computation.

Holding the input button without releasing across game loop iterations must have no effect on the vertical velocity of the bird.

🟡 Pipes

The goal of the game is to maneuver the bird for as long as possible through vertical openings between pairs of pipes that are randomly generated (moving from right to left to facilitate the illusion of movement) without the bird hitting any of the pipes or the ground.

The game should start with three sets of pipe pairs, each with exactly eight cells separating them from the next pair with the leftmost pair starting at column 10.

Each pipe must have a width of two cells and a height of at least one cell. The vertical opening that separates pairs of pipes from each other must always be 12 cells tall and starts at row \(h\) that is randomly generated per pipe pair.

In particular, the 32-cell height containing a pipe pair is divided into three parts:

Upper pipe with height \(h\)
12-cell vertical opening
Lower pipe with height equal to remaining vertical cells

\(h\) must be a randomly generated value in the range \([1, 19]\) that is derived in some way from the 16-bit value read from the RNG source.

Pipes must move in a constant speed from right to left (i.e., they must have a negative horizontal velocity). While you are free to set the actual value of the horizontal velocity (which can be "fractional" as explained above), the resulting game difficulty must be reasonable.

The color of the pipes should be reasonably distinguishable from the colors of all other entities on the grid. Additionally, it must also be reasonably distinguishable from any of the colors of the DawnBringer 16 color palette described in 32x32 RGB display section of Part 2.

🟡 Background

The color of the background should be reasonably distinguishable from the colors of all other entities on the grid. Additionally, it must also be reasonably distinguishable from any of the colors of the DawnBringer 16 color palette described in 32x32 RGB display section of Part 2.

🟡 Scoring

Whenever the left half of the bird reaches the right half of a pipe pair, the score of the player must be incremented by 1.

The current score of the player must be shown in base 10 at the top-right corner of the display, initially with a value of 00. The displayed score is fixed to be only two digits wide. Only the last two digits of scores with 3+ digit should be displayed.

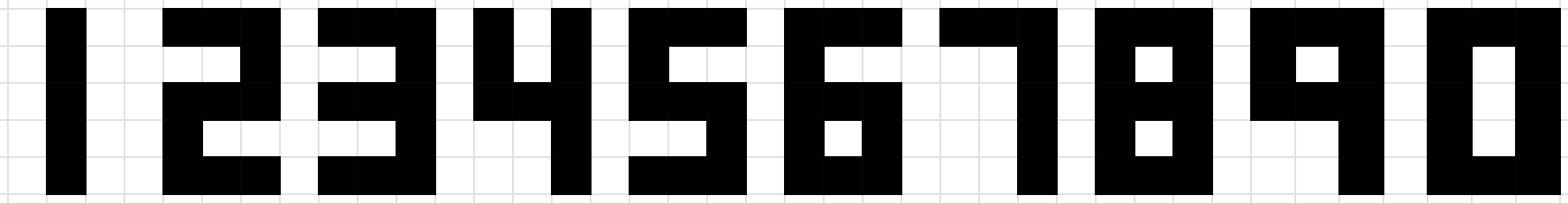

Each digit is 3x5 and should appear as follows:

Expected appearance of digits

The first digit of the two-digit score must have its top-left cell at row 1, column 24 while the top-left cell of the second at row 1, column 28.

The color of the text should be reasonably distinguishable from the colors of all other entities on the grid. You are allowed to use one of the colors of the DawnBringer 16 color palette.

🟡 Game flow

The game must start with the bird and the three pipe pairs at their initial positions. None of the entities will start moving (i.e., velocity and acceleration will not yet apply) until the input button is pressed.

When the bird is in contact with any pipe or the ground (where contact means overlapping cells in the case of pipes and having the top half of the bird be at row 31 for the ground), movement should stop (i.e., velocity and acceleration will stop being applied), signifying that the game is over.

While the game is over, pressing the input button should result in a new game state with the score reset to 00, the bird back in its initial position, and a new set of three starting pipe pairs randomly generated and at their starting positions.

🟠 Part 4: Digital-Based Arch-252 Processor

part4.md

🔴 Live Feature Addition Recording

In addition to the deliverables per task above, each main contributor is expected to submit a live recording of a feature addition to their assigned deliverable.

Recording rules

Live face of presenter must be shown throughout recording together with screen recording; Zoom may be used to easily set this up
For code-based deliverables, the code shown in the video must be reasonably legible
The video must be taken in one go (i.e., no cuts/pauses)
Explanations must be given as to why each addition or edit done is necessary
Explanations must be the own words of the presenter (i.e., no reading from a script)
While rehearsing the implementation of the new feature beforehand is allowed for code-based deliverables, the code must not be copied from some reference during the live recording
Related portions of the deliverable that are from AI output must be mentioned explicitly, complete with reference to the exact part of the LLM log (see LLM Policy section) showing the AI output
Video must include demo at the end proving that the implementation works as intended
Each video must take at most 30 minutes and must be uploaded separately (should not be spliced into a single compilation)

Failed rule adherence

All members of a group for which at least one recording that fails to adhere to the rules above will be given a grade of INC.

The INC grade will be resolved only through a synchronous in-person meeting to be scheduled with the CS 21 25.2 handlers during the midyear for the main contributors of the offending recordings.

🟠 Part 1 addition: `.def` directive

Implement the .def directive which is a nonemitting Arch-252 assembler directive that allows assembly programs to statically specify reusable aliases for recurring values. The .def directive is written as follows:

.def <name> <value>

where <name> and <value> are strings without spaces or newlines that are each at most 40 characters wide.

Simplifying assumptions

Each assembly program may have at most 10 .def lines.

You may assume that all instances of .def in the assembly source are given before any other line and that each <name> will not conflict with any existing instruction or directive name.

Your implementation does not have to be efficient (e.g., linear search on a static array is acceptable).

While the error handling mechanism must be modified to ensure that it does not interfere with the addition of aliases (you may do so by disabling the invalid argument check for the demo), there is no need to handle inexistent aliases.

🟠 Part 2 addition: `sp` region details

Extend the information panel such that the following details are displayed:

Word under address sp - 3 in hex
Word under address sp - 2 in hex
Word under address sp - 1 in hex
Word under address sp in hex
Word under address sp + 1 in hex
Word under address sp + 2 in hex
Word under address sp + 3 in hex

If any address above goes out-of-bounds of the address space, the value displayed for that address should be blank.

Existing text in the information panel should be moved to make ample space for the new details.

🟠 Part 3 addition: Y-coordinate display

Show the Y-coordinate of the bird (i.e., which zero-indexed row it currently is on) as a two-digit number similar to the score.

The top-left cell of the first digit must start at row 26, column 24 while the top-lefcell of the second must start at row 26, column 28.

The value shown must be the Y-coordinate of the bird at the end of a game loop iteration.

The color of the text should be reasonably distinguishable from the colors of all other entities on the grid. You are allowed to use one of the colors of the DawnBringer 16 color palette.

🟠 Part 4 addition: Information panel

The main circuit should have a region containing circuit components showing the following:

Current value of 16-bit tick counter using four seven-segment hex displays
Current instruction (e.g., ifgtu) via LEDs (one per instruction for all 27 instructions)

🔴 LLM Policy

While you are allowed to use LLMs to assist you, you are required to include a text or PDF file for each part containing all prompts and responses used for the project (see the next section for the required filenames).

If LLMs were not used for a specific part (e.g, Part 1), the said text of PDF file should not be present for the said part.

As mentioned, you are required to state in the live demo recording whether each relevant portion is your own work or from an LLM.

For cases in which the presenter of a live demo recording clearly does not understand the implementation in question, LLM logs must clearly show that the relevant portion of the implementation is sourced from an LLM.

If the LLM logs do not show that the portion of the implementation in question is from LLM use, then it will be assumed that the implementation is from a person who is not the main contributor (i.e., academic dishonesty) and will be dealt with accordingly.

🔴 Submission

🟠 Github Classroom repository

For each group, assign one person to create a Github Classroom repository for the group here (any unique group name will do): https://classroom.github.com/a/bkugNLXB

After the repository has been made, all other group members should click the link above and select the correct group.

The Github Classroom repository is meant to be a monorepo that contains the following at its root:

README.md
llm-part1.pdf or llm-part1.txt
llm-part2.pdf or llm-part2.txt
llm-part3.pdf or llm-part3.txt
llm-part4.pdf or llm-part4.txt
part1/
part2/
part3/
part4/

README.md must contain the following:

The names of your group members
Which deliverable each group member is the main contributor to
AI usage attribution as previously explained
Links to video documentation as previously explained
(optional) An overview of the project for portfolio purposes

Required repository visibility

The visibility of the repository must be set to private.

You are required to first seek permission from the CS 21 25.2 handlers to make this public for portfolio purposes.

🟠 Peer evaluation

You are to evaluate each group member based on three separate aspects on or before June 8 (M), 11:59 PM:

Reliability (30%)
Collaboration and Communication (30%)
Live recording (40%)

A Google Form will be made available with more information regarding each aspect.

🟠 Grading scheme

Your grade for the project will be computed as follows:

\(TotalScore = (0.25 \times IndivScore) + (0.75 \times GroupScore \times PeerEval\))

where

\(k\) refers to the single part for which you are the main contributor
\(IndivScore = IndivScore_k = (0.5 \times TestCases_k) + (0.5 \times VideoScore_k)\)
- \(TestCases_k\) is the score of Part \(k\) against test cases; range of \([0, 100]\)
- \(VideoScore_k\) is the score of the live recording for your part; range of \([0, 100]\)
\(\displaystyle GroupScore = \sum_{i=1}^{4} (TestCases_i \times 25)\)
\(PeerEval\) is the average percentage of all submitted peer evaluations for you after dropping the lowest score; range of \([0,1]\)
\(TestCases_k\) effectively appears twice in \(TotalScore\)

For students with two parts \(k\) and \(m\) which they are the main contributor to:

\(IndivScore = (0.5 \times IndivScore_k) + (0.5 \times IndivScore_m)\)

🟠 Deadline

Submit by June 7 (Su), 11:59 PM.

CS 21 25.2 Project (Arch-252 Ecosystem)

🔴 Project Overview

🔴 Arch-252 Architecture

🟠 Overview

🟠 Assembly instructions

🟠 Machine instruction encoding

🟠 I/O devices

🟡 Memory-mapped I/O

🟡 32x32 RGB display

🟡 Input button

🟡 Tick counter

🟡 RNG source

🔴 Tasks

🟠 Part 1: RISC-V-Based Assembler

🟡 Overview

🟡 Execution

🟡 .raw directive

🟡 .addr directive

🟡 Assembly file format

🟡 Binary file format

🟡 Error reporting

🟠 Part 2: Pyxel-Based Arch-252 Emulator

🟡 Overview

🟡 Execution

🟡 32x32 RGB display

🟡 Input button

🟡 Tick counter

🟡 RNG source

🟡 Information panel

🟠 Part 3: Simplified Flappy Bird in Arch-252 Assembly

🟡 Overview

🟡 Game loop

🟡 Player-controlled bird

🟡 Pipes

🟡 Background

🟡 Scoring

🟡 Game flow

🟠 Part 4: Digital-Based Arch-252 Processor

🔴 Live Feature Addition Recording

🟠 Part 1 addition: .def directive

🟠 Part 2 addition: sp region details

🟠 Part 3 addition: Y-coordinate display

🟠 Part 4 addition: Information panel

🔴 LLM Policy

🔴 Submission

🟠 Github Classroom repository

🟠 Peer evaluation

🟠 Grading scheme

🟠 Deadline

🟡 `.raw` directive

🟡 `.addr` directive

🟠 Part 1 addition: `.def` directive

🟠 Part 2 addition: `sp` region details
